Mortuary Chamber
Single Body mortury Freezer
Cabinet Construction: Double walled construction with inner chamber made of Stainless Steel 304 and outer body made of mild steel duly powder coated/Stainless Steel 304. High density polyurethane (PUF) insulation of desired thickness is filled between the walls and the whole structure is mounted on heavy duty castors for easy removability. Trays to carry bodies with handles at both ends slide on rollers/ three pieces Telescopic Chanel carriage assembly. Front opening, hinged stainless steel insulated doors lined with gasket, handle and lock arrangement with keys in duplicate for individual dead bodies. A double door system including the transparent inner acrylic door helps in viewing without disturbing the thermal conditions.
SR. NO. | DISCRIPTION OF SINGLE BODY (VIMC01) |
1. | The Mortuary box assembly should be for simplified, rugged, reliable and efficient, capacity: 1 (ONE) bodies. It should have full SS construction both inside and outside surface. |
2. | Mortuary unit outer body 20 guagess.and inner 22 guage ss. |
3. | Mortuary unit have direct colling. |
4. | TOP cover openable easy IN / OUT movement of body and for easy loading and unloading to the respective with handles. |
5. | Top cover make A grade transparent acrylic heavy duty unbreakable light weight. |
6. | The puff used shall have a density of at least 40 kg/m3 |
7. | Insulation 50 mm thickness. |
8. | The unit have a Microprocessor based temperature controller and should have facility for to display and control of process parameters. It should have facility to display setted temperature and current temperature. Temperature range : + 2 to 6 ° C. |
9. | Compartment havetemperature indicator / controller unit mounted on the front of unit corresponding to body box . |
10. | The unit have audio-visual alarms in case of low/high temperatures, system malfunctions etc |
11. | Energy efficient & environment friendly cooling system should be ISI certified high end ultra-mute CFC-free hermetically sealed compressors, conforming to latest international standards and guidelines. |
12. | Cooling compressors should be of reputed make kirloskar Emmerson.0.75 ton. |
13. | Lockable wheels |
14. | Outer size : 84/30/34 inch (L/W/H with top cover) Inner size : 80/26/20 inch ( L/W/H) |
15. | Weight : 75 kg. |
16. | Inbuilt stabilizer.2 kva |
17. | Operating voltage : 230 V AC/50Hz. |
TECHNICAL SPECIFICATION OF SINGLE BODY MORTUARY TOP OPEN.
2 BODY MORTUARY FREEZER
Temperature Range and Control:
Available with temperature range of -4°C to 6°C deg. However these cabinets can also be made with specific temperature range as required by the customer. For accurate measurement and display of temperature a LED or LCD display is used. These units are equipped with microprocessor based digital control panel which is operated with push buttons. For security and safe working high and low temperature alarm system is used.
Refrigeration System: Equipped with full functional cold storage facility. Refrigeration system is energy efficient, environment friendly, completely airtight and can be roof top or wall mounted. This refrigeration system can also be installed as remote equipment where noise or heat can be a nuisance. The evaporator is equipped with automatic electric defrosting. Featuring noise less compressor and air cooled condenser (water cooled condenser on demand) this cooling system provides full value of money.
Read More
Unit have microprocessar based controller cum indicator for condension unit construction Double walled construction and made of 304 grades corrosion resistant staainless steel for insulation high pressure- innjected polyurethane 100 mm is used for minimizing thermal lossand meeting the particular requirements of refrigeration in mortuaries.
Doors Doors are made of stainless steeel and fitted with external lock for security. These door are situated in front and allows easy loadind of trolleys. Compartment is equipped with higged door and double locking arrangement for each these doors feature lining in doorless rubber gasket and anti-condensation resistors.
Internal Lighting Lighting System comes with water proof fluorescent ceiling lamps which are fitted with a switch on the control panel.
DISCRIPTION OF 2 BODY MORTUARY FREEZER
|
Model
|
VI-MC02
|
|---|---|
|
Number of Bodies
|
2 Bodies
|
|
Temperature Range
|
-4°C to 6°C Deg
|
|
Temperature Control
|
Digital Micro-processor controller stand by compartment or double compressor with controller system.
|
|
Temperature Display
|
LED / LCD Display
|
|
Construction
|
304 Stainless Steel pipe frame, INNER S.S.22 guage , and Outer 20 guage
|
|
Insulation
|
High Grade Poly Uretherane / 100- MM
|
|
Doors
|
Made of Steel Sheets w/ Magnetic Gasket & External Lock
|
|
Trolleys
|
Made of Steel and sliding on telescopic rails/ It has 2 compartments with carriage for storage of cadaver.
|
|
Compressor
|
ISI Marked & CFC Free & CE (kirloskar (emmarson) two colling unit for complete compartment.
|
|
Defrosting Type
|
Automatic Temperature Control
|
|
Evaporator
|
Internal evaporator system Forced draught
|
|
Internal drainage
|
Yes
|
|
Integral temp gauge
|
optional
|
|
Refrigeration System
|
The refrigeration system controlled and temperature can be adjusted without reference. The high quality gel strip coated door gasket with strong aging resistance ability lengthens the device life of the door gasket. It has Bi-sonic motor. The imported copper vaporizer cooling pipeline has warranty ultra long service life. The temperature is maintained inside between -4°C to 6°C deg & fitted with fluoride free totally enclosed type. |
|
Air Circulation
|
Forced Air Circulation
|
|
Alarm
|
High / Low alarm system It has safety feature alarms 3 types & upto 7 failure alarms in corporate. Inbuilt Lithium accumulator can keep playing the temperature. |
|
Internal Lighting
|
Waterproof fluorescent ceiling lamps every compartment.
|
|
Locking System
|
Standard Key Locks
|
|
Power Supply
|
220 Volts / 50 Hz/ power
|
|
Essentials
|
User & Technical Manual,
|
|
Optional Accessories
|
Caters, Stabilizer, Loading Trolley, Instrument Trolley, Data Logger, Temperature Chart Recorder, Authorization Certificate |
Mortuary Freezer 4, 6 body
Temperature Range and Control: Available with temperature range of 2°C to 8°C and -10°C to -20°C. However these cabinets can also be made with specific temperature range as required by the customer. For accurate measurement and display of temperature a LED or LCD display is used. These units are equipped with microprocessor based digital control panel which is operated with push buttons. For security and safe working high and low temperature alarm system is used.
Refrigeration System: Equipped with full functional cold storage facility. Refrigeration system is energy efficient, environment friendly, completely airtight and can be roof top or wall mounted. This refrigeration system can also be installed as remote equipment where noise or heat can be a nuisance. The evaporator is equipped with automatic electric defrosting. Featuring noise less compressor and air cooled condenser (water cooled condenser on demand) this cooling system provides full value of money.
Doors Doors are made of painted stainless steel and fitted with external lock for security.These doors are situated in front and allows easy loading of trolleys.

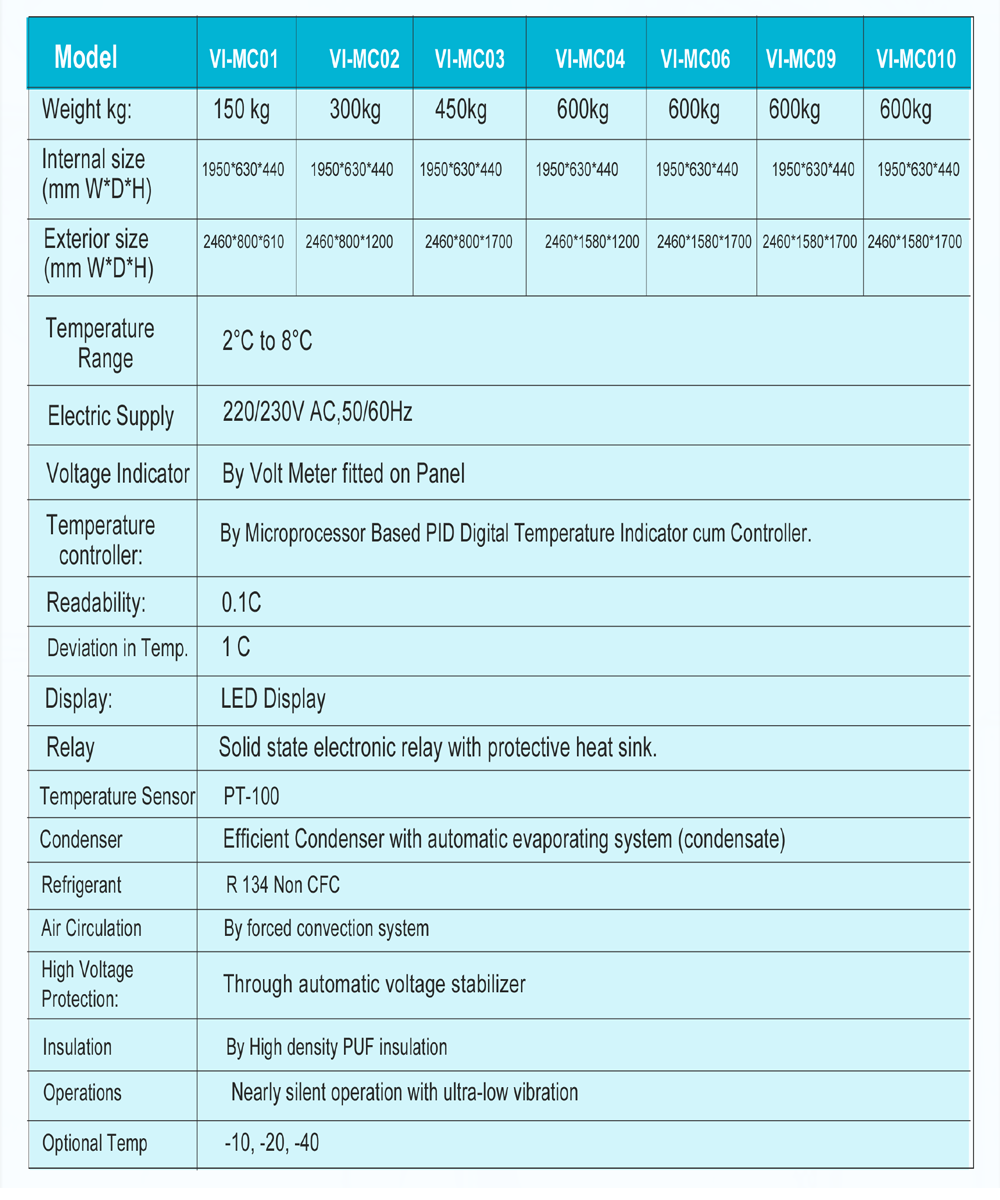

DISCRIPTION OF 2, 3, 4, 6 BODY MORTUARY FREEZER
